Clever robotics for laundries closes automation hole
The textile and garment business is going through main challenges with present provide chain and vitality points. The longer term restoration can be threatened by components that hinder manufacturing, corresponding to labour and gear shortages, which put them below further stress. The competitiveness of the business, particularly in a world context, relies on how affected firms reply to those framework circumstances. One resolution is to maneuver the manufacturing of clothes again to Europe in an economically viable approach. Shorter transport routes and the related vital financial savings in transport prices and greenhouse gases converse in favour of this. However, the associated increased wage prices and the prevailing scarcity of expert staff on this nation have to be compensated. The latter requires additional automation of textile processing. The German deep-tech start-up sewts GmbH from Munich has targeted on the nice potential that lies on this process. It develops options with the assistance of which robots – just like people – anticipate how a textile will behave and adapt their motion accordingly.
The German deep-tech start-up sewts GmbH from Munich has targeted on the nice potential that lies on this process. It develops options with the assistance of which robots – just like people – anticipate how a textile will behave and adapt their motion accordingly. In step one, sewts has set its sights on an software for big industrial laundries. With a system that makes use of each 2D and 3D cameras from IDS Imaging Improvement Techniques GmbH, the younger entrepreneurs are automating one of many final remaining handbook steps in large-scale industrial laundries, the unfolding course of. Though 90% of the method steps in industrial washing are already automated, the remaining handbook operations account for 30% of labour prices. The potential financial savings by means of automation are due to this fact huge at this level.
Utility
It’s true that industrial laundries already function in a extremely automated atmosphere to deal with the big volumes of laundry. Amongst different issues, the folding of laundry is finished by machines. Nonetheless, every of those machines normally requires an worker to manually unfold out the laundry and feed it with out creases. This monotonous and strenuous loading of the folding machines has a disproportionate impact on personnel prices. As well as, certified workforce is troublesome to search out, which regularly has an affect on the capability utilisation and thus the profitability of business laundries. The seasonal nature of the enterprise additionally requires a excessive diploma of flexibility. sewts makes IDS cameras the picture processing parts of a brand new sort of clever system whose know-how can now be used to automate particular person steps, corresponding to sorting soiled textiles or inserting laundry into folding machines.
“The actual problem right here is the malleability of the textiles,” explains Tim Doerks, co-founder and CTO. Whereas the automation of the processing of strong supplies, corresponding to metals, is relatively unproblematic with the assistance of robotics and AI options, obtainable software program options and traditional picture processing typically nonetheless have their limits relating to simply deformable supplies. Accordingly, commercially obtainable robots and gripping methods have thus far solely been capable of carry out such easy operations as gripping a towel or piece of clothes inadequately. However the sewts system

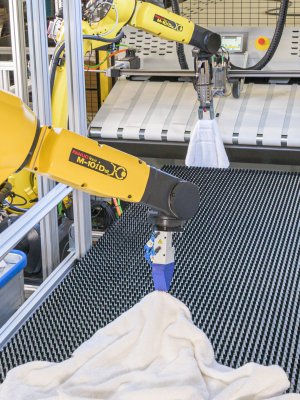

VELUM can present this. With the assistance of clever software program and easy-to-integrate IDS cameras, it is ready to analyse dimensionally unstable supplies corresponding to textiles. Due to the brand new know-how, robots can predict the behaviour of those supplies throughout gripping in actual time. It empowers VELUM to feed towels and comparable linen manufactured from terry material simply and crease-free into current folding machines, thus closing a cost-sensitive automation hole.
The software program suite developed by sewts combines commercially obtainable robots, grippers and cameras into an clever system. Within the seek for the fitting digital camera modules, a number of standards had been decisive for the Munich-based firm along with uncompromising industrial suitability: “We want a 3D digital camera that’s cost-effective as a result of we use two to a few 3D cameras relying on the system configuration. As well as, it should above all guarantee excessive accuracy of the depth knowledge,” explains Tim Doerks.
“Past that, we’d like 2D cameras which might be gentle delicate, ship excessive dynamic vary and are appropriate to be used in a multi-camera system.” The founders discovered what they had been on the lookout for within the IDS portfolio: For the VELUM multi-camera system, the selection fell on the brand new Ensenso S10 3D digital camera in addition to fashions from the uEye CP digital camera sequence. Their process is to determine, each in 2D and 3D, attention-grabbing options and gripping factors of the textiles which might be fed into the system after washing and drying in an unordered method in a container or on a conveyor belt. The form and place of the person objects can’t be predicted. The cameras seize the completely different textures of the supplies. They distinguish which hems there are on a towel and the place corners are.
We match the photographs from the 2D and 3D cameras to have the next 2D decision along with the 3D knowledge. So we use the respective benefits of the 2D digital camera, on this case the upper decision, and the 3D digital camera, i.e. the exact depth knowledge”, Tim Doerks, co-founder and CTO at sewts mentiones. Outfitted with a 1.6 MP Sony sensor, the Ensenso S10 makes use of a 3D course of based mostly on structured gentle: A narrow-band infrared laser projector produces a high-contrast dot sample even on objects with troublesome surfaces or in dimly lit environments. Every picture captured by the 1.6 MP Sony sensor gives an entire level cloud with as much as 85,000 depth factors. Synthetic intelligence permits dependable task of the laser factors discovered to the hard-coded positions of the projection. This leads to the sturdy 3D knowledge with the mandatory depth accuracy, from which VELUM extracts the coordinates for the gripping factors.
The complementary GV-5280CP-C-HQ industrial digital camera with GigE Imaginative and prescient firmware is provided with Sony’s IMX264 2/3″ world shutter CMOS sensor. It delivers near-noise-free, high-contrast 5 MP photos in 5:4 format at 22 fps at full GigE velocity in purposes with fluctuating lighting circumstances. The uEye CP digital camera presents most performance with in depth pixel pre-processing and is ideal for multi-camera methods because of the inner 120 MB picture reminiscence for buffering picture sequences. At round 50 g, the small magnesium housing is as gentle as it’s sturdy and predestines the digital camera for space-critical purposes and to be used on robotic arms.
Software program
Relying on buyer necessities or configuration, two to a few uEye 2D or Ensenso 3D cameras are used – each fashions might be seamlessly built-in into VELUM. “We’re consultants in making ready the generated knowledge, which is particularly essential when working with 3D level clouds. This pre-processing is a vital element of our methods with the intention to generate appropriate enter for our synthetic intelligence,” Tim Doerks emphasises. The AI developed by sewts processes the information provided by the uEye CP or Ensenso S cameras. The clever software program analyses the topology of the textiles utilizing options such because the course of the seam, native elevations or the relative place of seams, classifies them based on textile sort and sophistication utilizing varied textures and embroidery patterns and interprets these findings into robotic instructions.
The info is processed through Convolutional Neural Networks (CNN) and classical picture processing. “We use IDS peak, the software program improvement package from IDS. We connect with our system through Python and the IDS Library,” reveals Until Rickert, co-founder and CPO of sewts. “The added worth of the IDS software program bundle for us lies primarily within the ease of calibration and integration into our Excessive Tech Imaginative and prescient System,” he continues.
“AI is on the core of our know-how. Clever algorithms are wanted to construct adaptive methods that may address non-deterministic automation processes. That’s why we use the most recent findings from AI analysis, refine them for our wants and at last put them collectively into an enormous complete,” provides Until Rickert. It receives varied sensor knowledge (e.g. optical info), attracts conclusions from them on a human-like cognitive stage and interprets them into robotic instructions. On this approach, methods like VELUM carry out duties that beforehand required the human thoughts. That is precisely what sewts’ company philosophy is all about: “Our aim is to rework advanced handbook work into clean automation”.
Outlook
With methods like VELUM, laundries can considerably enhance their throughput whatever the staffing state of affairs and thus enhance their profitability. “By closing this vital automation hole, we will nearly double the productiveness of a textile washing line,” assures CEO Alexander Bley.
IDS cameras can be used for clothes corresponding to shirts and trousers sooner or later. “It is very important perceive the properties of those supplies with the intention to implement sturdy processes. We obtain this by means of subtle materials simulations. With the intention to simulate the behaviour of textiles, we create particular FE simulations utilizing the finite factor technique,” explains Alexander Bley. However the Munich-based firm has an overarching imaginative and prescient: “We wish to make it attainable to automate the manufacturing of clothes and transfer it again to the purpose of use in a cost-efficient approach. On this approach, we shorten transport distances, create extra dependable provide chains, save CO2 emissions and fight the issue of overproduction.” Moreover purposes with supplies that aren’t textiles are additionally deliberate for the long run.
There are various potential use circumstances for applied sciences like these, and picture processing will all the time play a major position. Synthetic intelligence will speed up this improvement.
Cameras
Ensenso S: 3D laser level triangulation with synthetic intelligence
• Extremely-compact and cost-efficient
• Excessive 3D knowledge charge and accuracy by means of AI assist
• Sturdy 3D knowledge even in low ambient lighting
• Structured gentle with AI-based laser dot sample triangulation
• Appropriate for purposes in logistics automation, robotic imaginative and prescient, impediment detection, monitoring and horticultural automation, and many others.
Extremely quick, extremely dependable, unimaginable sensors: The uEye CP
• Interface: Ethernet
• Mannequin: GV-5280CP-C-HQ
• Sensortyp: CMOS
• Sensor sort: CMOS
• Producer: Sony
• Body charge: 24.0 fps
• Decision (h x v): 2448 x 2048
• Shutter: International Shutter
• Decision: 5.01 MPixel
• Dimensions: 29 x 29 x 29 mm
• Weight: 52 g
• Connector: GigE RJ46, screwable
• Functions: e.g. industrial picture processing, mechanical engineering, floor inspection, medical know-how, site visitors & transport, high quality assurance, and many others.
Shopper
Based in 2019, Munich-based sewts GmbH is a supplier of progressive management and picture processing software program that pushes the boundaries of robotics when processing simply deformable supplies. sewts has developed a singular know-how that makes use of high-precision finite factor technique (FEM) simulations to effectively practice machine studying algorithms. The clever software program resolution permits numerous purposes in industrial automation, such because the processing of textiles in industrial laundries or the manufacturing of clothes, but in addition the dealing with of foils, cables, deformable plastic components and lots of extra.
www.sewts.com
